Additional Features:
- Dual Input
- Power: 250W, 50W
- Voltage: 60V, 60V
- Current: 50A, 5A
- Minimum Voltage: 0.4V at 50A, 0.4V at 5A
- Full front panel control with 150 memory states
- Sequencer: 9 sequences, up to 16 steps each
- SL DC Operating Modes: CC, CR, CP, CV, shorts, dynamic
- SLD Operating Modes: CC, CR, CV, shorts, dynamic
- SL AC Operating Modes: CC, Crest Factor, CR
- Standard GPIB / RS-232 programming
- Analog inputs
Flexible measurement
- 16-bit, 4.5 Digit front panel meters
- 16-bit GPIB, RS-232 readback
- Isolated current monitor output (DC single input models <200V)

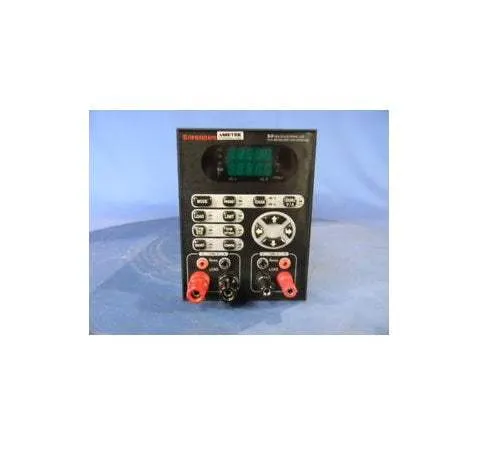

The Sorensen SLD-60-505-255 DC modules are specifically designed for low power, high channel count testing and provide the highest channel density available.
